Smart choice for destination charging

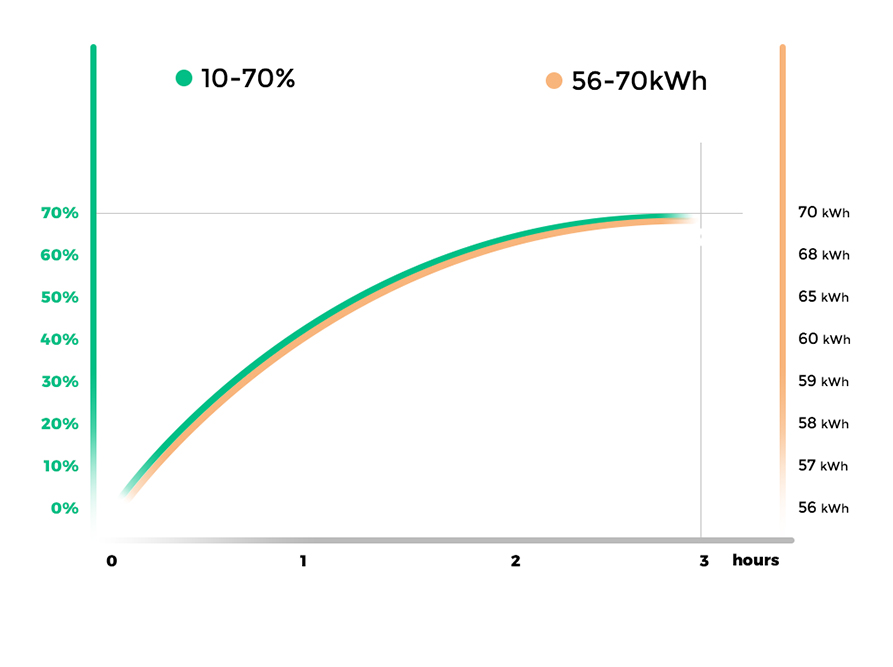

SEC 30 is perfectly suited for the scenario of people staying for a few hours at the planned stops along the way, ready to charge EVs at an acceptable and reasonable time.
- 3 hours
- 56-70 kWh
- 10%-70% SoC
SEC30 Integrated Charger
The SEC30 Integrated Charger adopts modular design and outstanding industrial design, is an ideal solution for Destination Charging(residential complexes, commercial parking lots), seeking a reliable and cost-effective charging infrastructure for electric vehicles. With its advanced user-friendly design and smart functions, SEC 30 can offer convenient and stable charging experience.

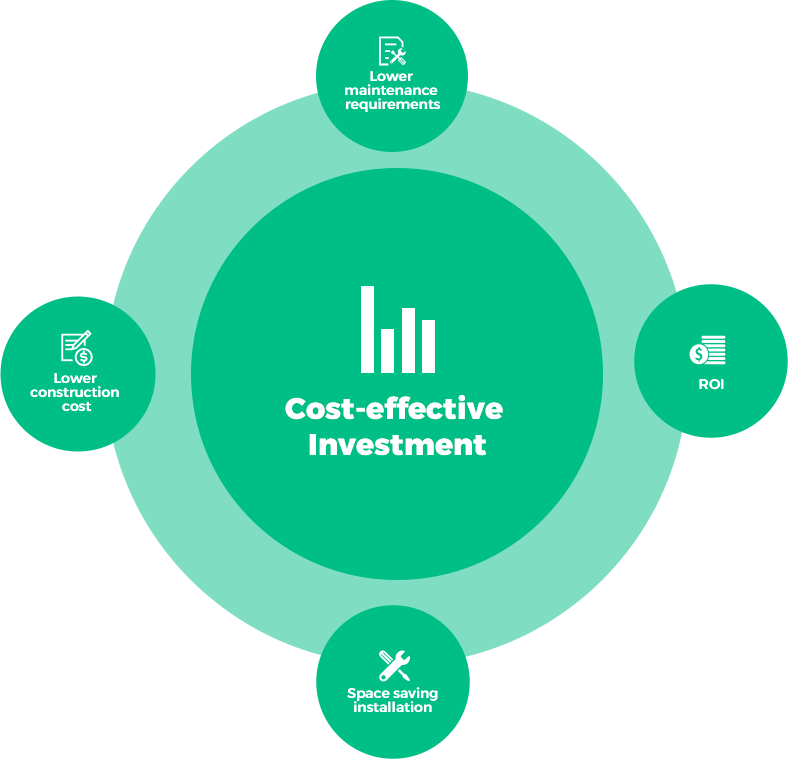

Cost-effective Investment
SEC30 offers faster charging speed than AC charger, and lower cost than high power DC charger
The SEC 30 charging station offers a cost-effective solution for installation. It can be mounted on pedestals or walls, reducing the need for expensive installation materials.
Compared to higher power level DC charger, SEC 30 installation doesn’t require additional machinery like forklifts, relying only on human resources.
With a slim 200mm depth, the SEC 30 is ideal for installations against walls, maximizing space utilization.
The modular design of the SEC 30 makes it easy to maintain. Any faulty power modules can be hot-plugged in or out, minimizing downtime.
Sinexcel’s self-developed power modules ensure reliable performance and reduced maintenance needs.Maximum
The SEC 30 charging station offers a low investment option for DC charging businesses compared to higher power alternatives.
The reduced upfront costs contribute to a faster return on investment, making it an attractive choice for businesses aiming to enter the EV charging market. Minimum investment for DC charging business compared to higher level DC charging products.
Powerful output in a compact enclosure
With its smaller footprint, it can provide a more compact and space-saving solution for EV charging needs
For End Users
it is easy to install with flexibility and deliver sufficient supply to EVs of the family
For Distributors
order bulk with low purchase price as well as save the transportation cost and storage space
For CPOs
SEC 30 is a quick kick start to deploy DC charging network with lower investment
Intelligent and futureproof design
Seamless Over-the-Air Updates
The SEC 30 charger can be updated over-the-air, providing easy access to new features and ensuring that it is always up-to-date with the latest technology.
This feature enables quick and effortless software upgrades without requiring physical access to the charger, saving valuable time and resources.
Adaptable Voltage Range
The SEC 30 charger boasts a wide output voltage range of 50V-1000V, making it adaptable to future electric vehicle models.
This feature ensures that the charger can support a diverse range of EVs, providing greater convenience and accessibility for EV owners.
Dynamic Load Management
The SEC 30 charger is equipped with dynamic load management capabilities, allowing it to efficiently adjust charging speeds based on available power.
This feature ensures that the charger can operate reliably in sites with limited electrical capacity, preventing power overloads and reducing the risk of downtime.
Key Features
Visualized charging status with 8 inch LCD touch screen and LED pilot lights.
Durable weatherproof enclosure for indoor or outdoor installation and use
Undervoltage protection, Overvoltage protection, DC Overcurrent protection, Over-temperature protection, Surge Protection Device, Emergency Stop Protection, etc
The installation options include wall-mounted, pole-mounted, and portable configurations.
Support single-connector, is captible with CCS2 80A, CCS2 125A, and CHAdeMO 80A charging connectors
Technical specifications
| 30kW Integrated Charger | ||
|---|---|---|
|
Input Characteristic
|
Input voltage | 380 VAC +/- 10% |
| Input frequency | 50 / 60 Hz | |
| Input type | 3P + N + PE | |
| Input current | 50A | |
| Input power | 33kVA | |
| Power factor | 0.99 | |
| THDi | <5% | |
| Grounding type | TN-S, TN-CS | |
|
Output Characteristic
|
Connector options | Single connector, CCS2 or CHAdeMO |
| Output voltage | CCS2: 50-1000 Vdc CHAdeMO: 50-500 Vdc | |
| Maximum output current | Standard CCS2: 80A | |
| Rated power | DC: 30kW | |
| Peak efficiency | 96% | |
|
Environment
|
Operational altitude | <2000 m |
| Operational temperature | -25 °C to +50 °C (Full power) | |
| Temperature derating |
Up to 50 °C: 100% output power, 50-65 °C interval, linear power limit, 65 °C or more, module shutdown protection. | |
| Storage temperature range | -30 °C to +70 °C | |
| Humidity | 5 %-95 % Rh non-condensing | |
|
Structure
|
IP and IK rating | IP55/ IK10 |
| Dimensions | W550mm*D700mm*H200mm | |
| Weight | ≤65 kg | |
|
Others
|
Communication interface | 4G / LAN Port |
| Language | English (Support customizing other languages) | |
| Communication protocol | OCPP1.6J, OCPP 2.0.1 upgradable | |
| Cooling method | Air cooled | |
| Payment method | RFID/APP/Credit card | |
| EMC | Class A (industrial) | |
Certificate & Quality Assurance
Certifications:
Standards:
IEC 61851, IEC 62196, DIN 70121, ISO 15118
Customer Support:
Sinexcel expert team quick response
Rapid on-site service
Remote technical support
Spare parts management
