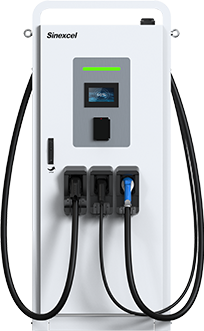

SEC 40-160kW INTEGRATED CHARGER

Sinexcel SEC 80kW charger is equipped with 2 DC charging connectors, which supports the output at a maximum of 1000V and 80kW full power. In order to charge for more EVs at the same time, an Type 2 connector with 22kW is optional to realize this purpose. It is suitable to various charging scenarios and also meet most of EVs’ charging needs in the market.
User/Installation Manual
Datasheet
Maintenance Manual

ULTRA WIDE OUTPUT VOLTAGE & HIGH EFFICIENCY

Output voltage 200-1000V, Constant output voltage 300-1000V.
Support high power charging and can output at 80kW continuously.
Compatible with all EVs in the market and meet future demands.

Equipped with Sinexcel self-developed power module, SEC 80kW can output at a peak efficiency of 96%, which can reduce the power consumption and save the cost thus realize the max profit.

40-160kW FLEXIBLE CONFIGURATION FOR DC CHARGING

Support 160kW output power at maximum, to provide faster charging rate and promote user experience. Due to the modular design of the charging system, SEC 160kW can charge simultaneously, and the whole charging power can be separated equally to each connector, making the power configuration more flexible. Equipped with Sinexcel 20kW power module, providing high efficiency and power utilization of DC charging.40-160kW flexible configuration with customization and it is easy to upgrade by adding power modules.

MAKE FULL USE OF CHARGING POWER TO SHORTEN THE CHARGING TIME

Power allocation: 160kW DC charging+22kW AC Charging
The charger can provide up to 160kW power to 1 vehicle or up to 40kW power to charge 2 vehicles simultaneously, and the power of
AC charging is fixed as 22kW.
Operate at 160kW can charge up to 80% SOC to a 60kWh capacity EV within 30 minutes

80kW DC charging

0kW

80kW DC charging

40kW

80kW DC charging

80kW DC charging

0kW

80kW DC charging

40kW

COMPACT EASY INSTALLATION AND CONVENIENT MAINTENANCE

  • It has the smallest footprint with the compact appearance which can be flexible with any location and suited to limited available space
  • Effortless and easy installation to save construction cost and enable quick return on the investment
  • Thanks to the integrated and function modular design, it is convenient to access and maintenance.
Charging Scenarios:

COMPACT EASY INSTALLATION AND CONVENIENT MAINTENANCE

  • Destination charging such as shopping, workplaces, malls, tourist attractions, etc. For a few hours stay on the journey or on the work.
  • Be compatible with limited capacity grid which can not support high power charge points, 40-80kW charger can suit that grids and meet most charging needs.
  • Support fast return on the investment. The SEC 80kW integrated charger can cover 3 parking spots and increase utilization of charging assets under the same distribution system. It provides maximum revenue opportunity by 3 charging connectors on 1 EVSE.
Stay for 5 hours, can power the electric vehicle from 20% SOC to 100% SOC with AC connector.
Stay for less than 2 hours, can power 2 electric vehicles from 20% SOC to 80% SOC with DC connectors at the same time.

SUPPORT NOISE-SENSITIVE AREA CHARGING

Intelligent control of heat dissipation fan

The module can realize intelligent control of fan speed and smooth adjustment according to the detected heating states of the device for great noise control effect.

Mute mode function

The module can be set into the mute mode to reduce fan speed by derating output. The noise can be reduced and maintained <55dB which is able to use at noise-sensitive area.

CONNECTOR OPTIONS

Support CHAdeMO, CCS2, and type 2 AC charging connectors Customized connector options for different user needs

SEC 80kW CCS2+CCS2+Type2

SEC 80kW CCS2+CHAdeMO+Type2

SEC 80kW CCS2+CHAdeMO

SEC 80kW CCS2 +CCS2

SEC 80kW CCS2

MODULAR DESIGN FOR EASY INSTALLATION AND MAINTENANCE

SEC 80kW adopts function modular design, which makes it convenient to produce, install and maintain.

TECHNICAL SPECIFICATIONS
