High Power Output
The dual-connector dispenser is equipped with two liquid-cooled connectors,
enabling simultaneous charging for two heavy duty trucks.
SEC1280 Distributed Charger
The SEC Distributed Series DC Charger delivers up to 1280 kW with maximum 16 connectors, and offers flexible configurations tailored for diverse operational scenarios, such as fleet operations, bus charging, and highway station applications.

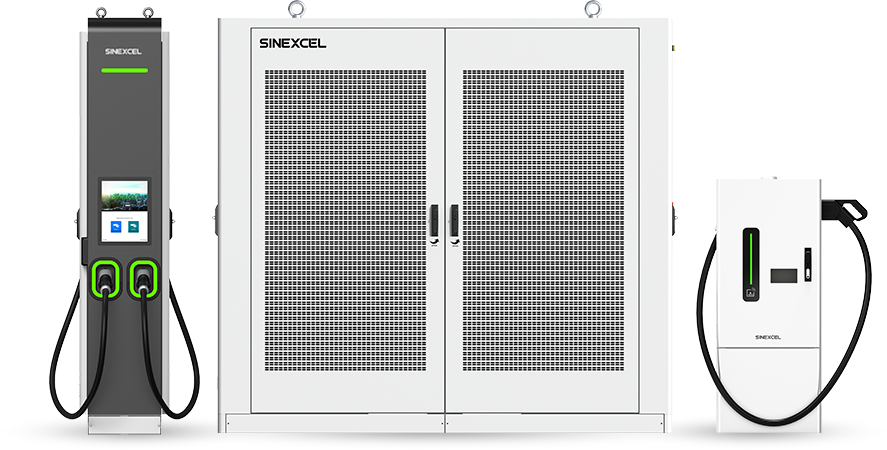

Product Configuration

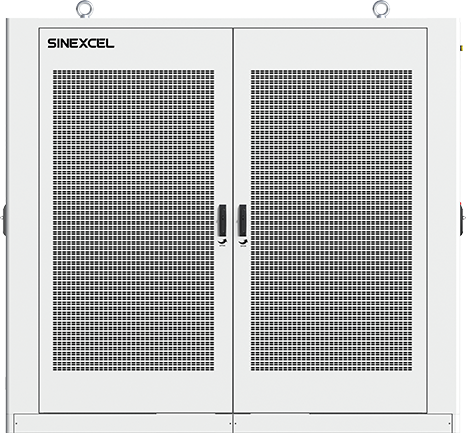

Power Bank
Rated output power of 960kW or 1280kW Equipped with SINEXCEL self-developed power modules, allowing the charging system's power to be adjusted by adding or removing modules

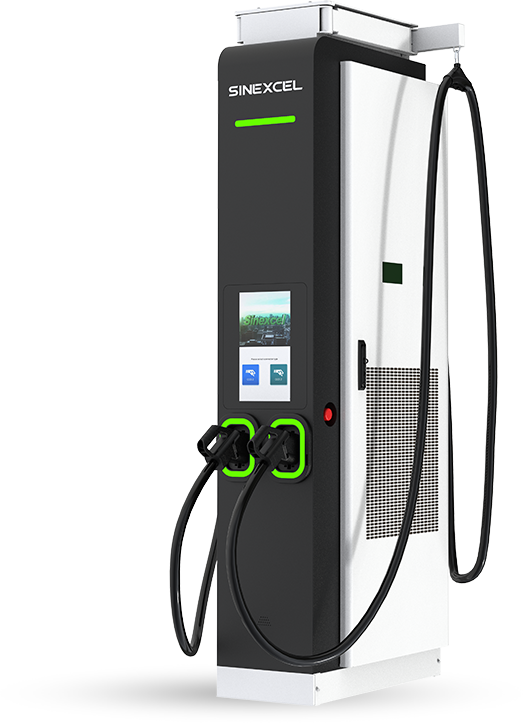

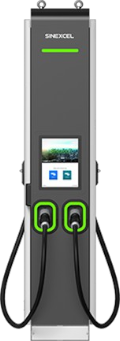

Dispenser
Continuous charging at 500A Max. 600A output Connector combination: 350A+350A, 500A+500A, 500A+350A

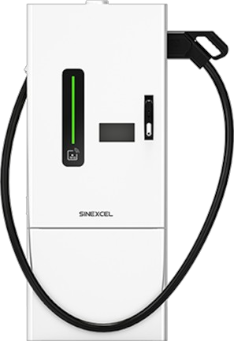

Suspended Dispenser
Max. 200A output Support wall-mounted, gantry mounted and pedestal solutions
Ultra Wide Output Voltage & High Efficiency
Output voltage range of 200V to 1000V, capable of charging high-voltage vehicles on the market, compatible with various passenger and commercial vehicles, and meeting future charging trends.
Peak Efficiency
0
%
Average Efficiency
0
%

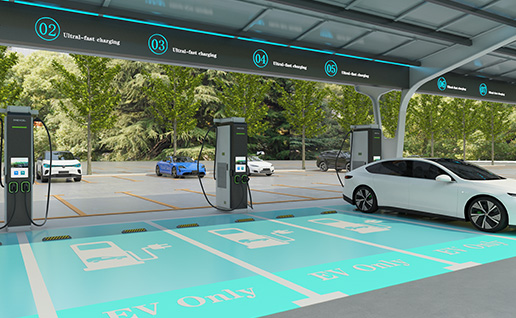

Design For Various Charging Scenarios
Versatile Configuration:
The product lineup is comprehensive, offering a range of dispensers, allowing it to adapt to various scenarios.

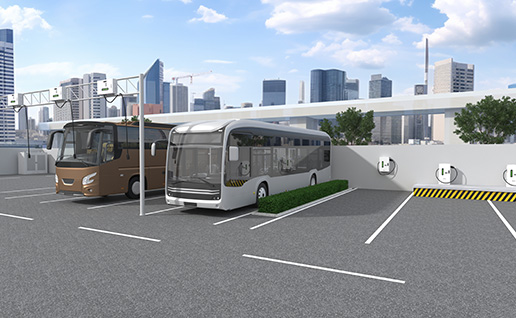

Bus Depot
Highway Charging Station

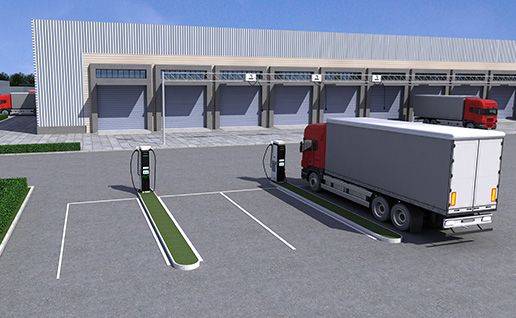

Fleet
Flexible Power Switching
The power bank flexibly distributes power to maximize power utilization, while the charging
connectors intelligently output power based on charging requirement of electric vehicles.

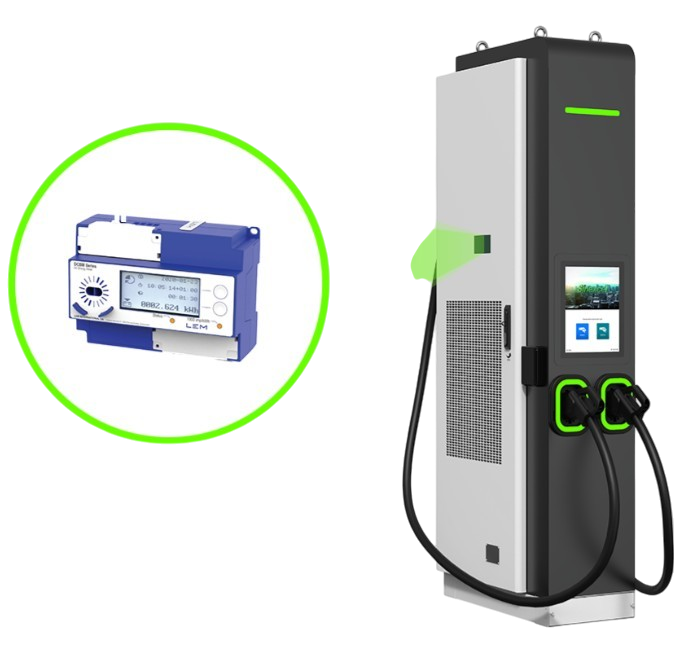

Eichrecht Approved
- The first Eichrecht-certified megawatt charger product in the industry
- Validate the accuracy and transparency of charging data measurement and billing
- Comply with Germany’s requirements for charging stations in public operation sites

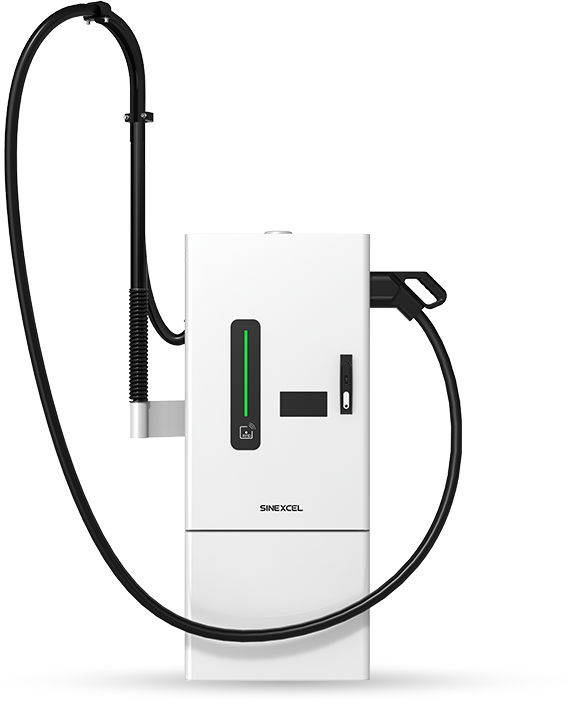

Cable Management System
- Make the cable lighter to save effort for easily use
- Keep the cable clean and organized
- Minimize friction and prevent hazards
- Increase durability and user safety
Technical specifications
| item | Parameter | |
Power bank |
Rated output power | 960kW,1280kW |
| Input Voltage Range | 400(±10%) @ 50 Hz | |
| DC Output Voltage | 200-1000V | |
| Power Factor | 0.99 | |
| THDI | ≤5 % | |
| Peak Efficiency | 96.3% | |
| Maximum Output quantity | 16 connectors | |
| Protection | Lightning protection Emergency protection Overload protection Short-circuit protection Leakage protection Overcharge protection Over/Under voltage protection Reverse connection protection Over temperature protection | |
| Operational altitude | ≤2000 m | |
| Operating temperature | -25 °C to +50 °C (Full power) | |
| Humidity | 5 %-95 % Rh non-condensing | |
| IP/lK degree | IP55/IK10 | |
| Dimension | W2300*D1100*H2100 mm | |
| Weight | ≤2000kg | |
| Certificate | CE | |
Dispenser |
Output voltage | 200~1000V |
| Rated output power | Up to 1000kW | |
| Maximum current per connector | CCS2(Conventional cooling):350A(boost to 500A); CCS2(Liquid cooling):500A(boost to 600A) | |
| Connector combination | 350A+350A:500A+500A:500A+350A | |
| Cable length | 5m/7m(optional) | |
| Screen | 15" HD touchscreen | |
| User Authentication | Credit Card, QR Code, RFlD Card, Autocharge | |
| Connectivity | Ethernet/GSM,4G | |
| Language | English (Support customizing other languages) | |
| Barrier free design | Yes | |
| Size | W450*D800*H2100 mm | |
| Protection Level | IP55/IK10 | |
| Weight | ≤270kg | |
| Backend communication | OCPP 1.6J(OCPP 2.0.1 available in 2025) | |
| EVcommunication | DIN70121.ISO 15118 | |
| Standards | IEC 61851-1.IEC 61851-23.IEC 61851-21-2 | |
| Certificate | CE,RCM, Eichrecht, MID compliant, OCA1.6 | |
Suspended Dispenser |
Output voltage | 200~1000V |
| Rated output power | Up to 200kW | |
| Maximum current per connector | CCS2(Conventional cooling):200A | |
| Cable length | 5m/7m(optional) | |
| User Authentication | RFID Card, Autocharge | |
| Connectivity | Ethernet/GSM.4G | |
| Size | W500*D200*H800 mm | |
| Protection Level | IP55/IK10 | |
| Weight | ≤50kg | |
| Backend communication | OCPP | |
| EVcommunication | DIN70121.ISO 15118 | |
| Standards | IEC 61851-1,IEC 61851-23,IEC 61851-21-2 | |
| Certificate | CE |
